RidgeBeamer – Instant Ranch Solar Power System

Description

When you need to have fast, dependable power on your farm but you can’t afford to wait to have complex systems installed for you *OR* have your already too-busy people do it yourself… then the RidgeBeamer might be the way to go!

This is the FASTEST, EASIEST, and most ECONOMICAL method to solar power to your ranch, orchard, farm, or other agricultural supply chain (for example a set of greenhouses).

The best way to understand this gateway platform is to see the list of features:

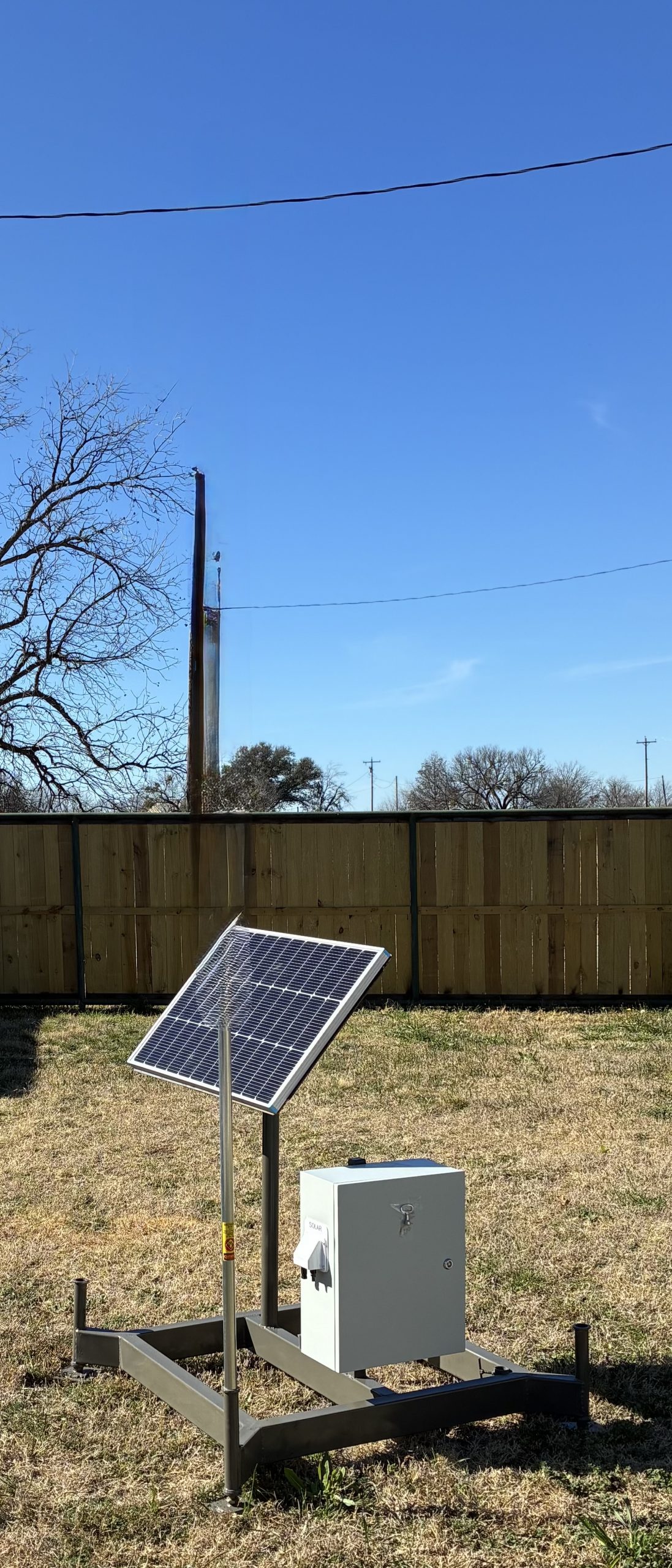

• Physical Structure Features
  • Heavy 2×4 steel painted frame – 75 pounds
  • Stable 4 corner design with wide stance
  • Fits in the bed of most pickups (The BearMar Toyota Tacoma can haul this.. with an inch to spare)

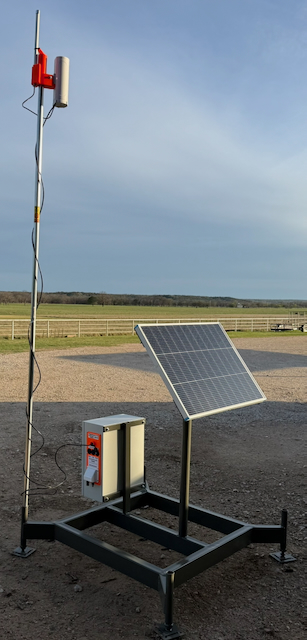

  • Antenna poles can go in any of 4 corners – 10 foot pole is standard
  • Solar panel mount is sized for the popular Renogy 100W panel
  • Upright mount fits the 20x16x8 weatherproof steel panel box
• Power Features
  • Renogy 100W solar panel (system can be modified for more power for other applications)
  • 1200WH (Watt Hour) LiFePO4 Battery ( Currently the “standard” for dense solar power )
  • Renogy 30A Solar Controller without separate load control. I do not care for the load control because it won’t “self turn on” in extreme low power conditions.
  • Easy to use 1-2-3 button sequence for powering the system. Lighted buttons give indication of life.
  • Tough sealed panel box for extreme weather conditions.
  • System is designed to run a 12W LoRaWAN gateway for 24-7 operation with plenty of room for low solar power situations.
    • Over 4 days of operation with a fully charged system and no sun (not likely)
    • Full recharge in approximately 2 days from “dead” (also unlikely)

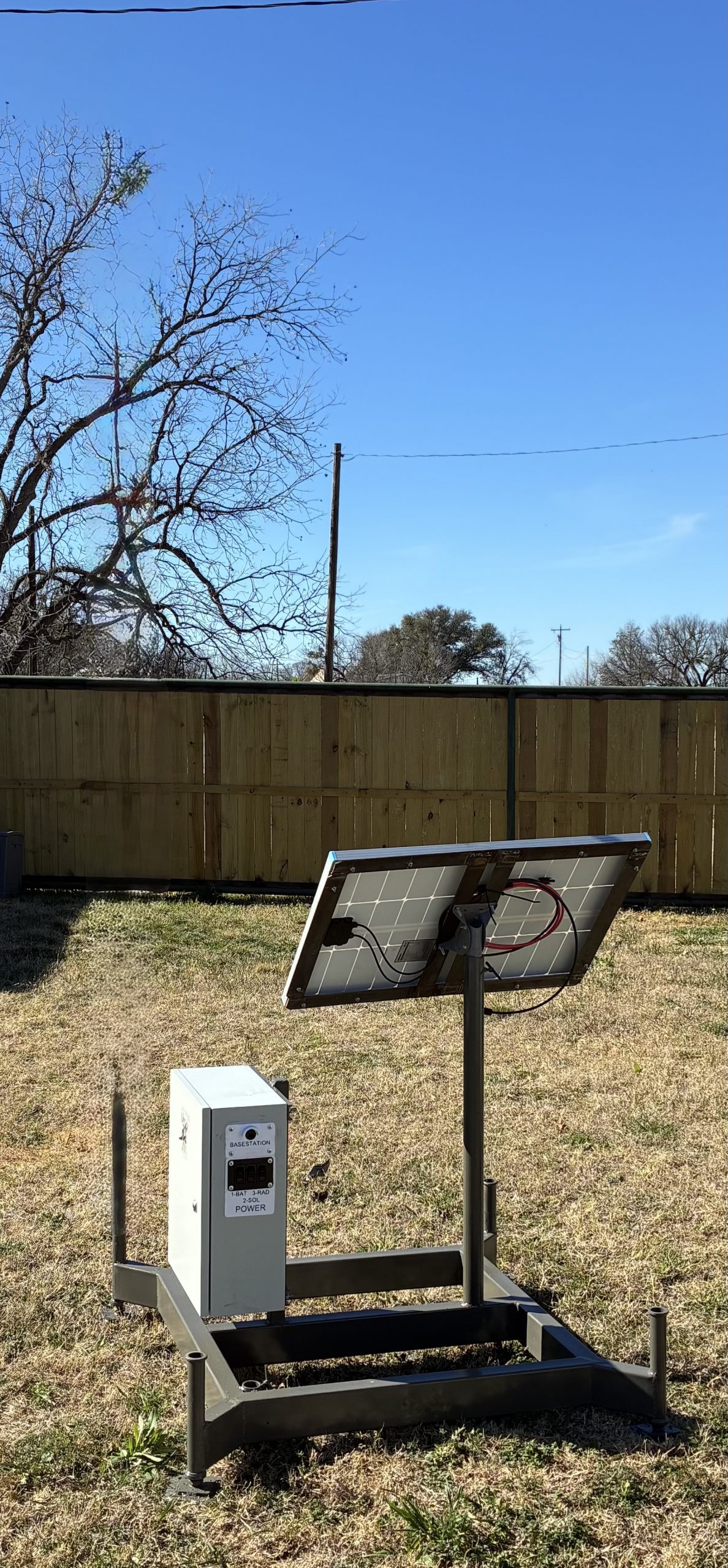

  • Solar Panel can be tilted and rotated to favor different latitudes.
  • Please contact BearMar using the contact page to arrange for special power options:
    • Larger Battery Storage System
    • Different Power Plugs
    • Larger Solar Panel System
    • Different Power Plugs Arrangement (110VAC, 12V terminals, 12VDC Jack, USB)
    • Different Solar controller

NO SHIPPING. YOU MUST ARRANGE FOR PICKUP.
